In this article, we’ll show you Oppo A6X 5G CPH2783 UFS ISP Pinout that allows you to write DUMP file, Chip re-programming, or flash firmware or remove frp lock, bypass FRP, remove locks, and flash the stock firmware using any UFS repair tool.
What is ISP Pinout?
ISP (In-System Programming) allows flash chip to be programmed without removing it from the PCB. It uses a specific pinout and protocol to communicate with computer.
A test point is a copper points on a PCB that allows you to boot the phone into the emergency download mode to perform flashing, unlocking or repairing the phone.
Read more: Oppo A60 CPH2683 UFS ISP Pinout

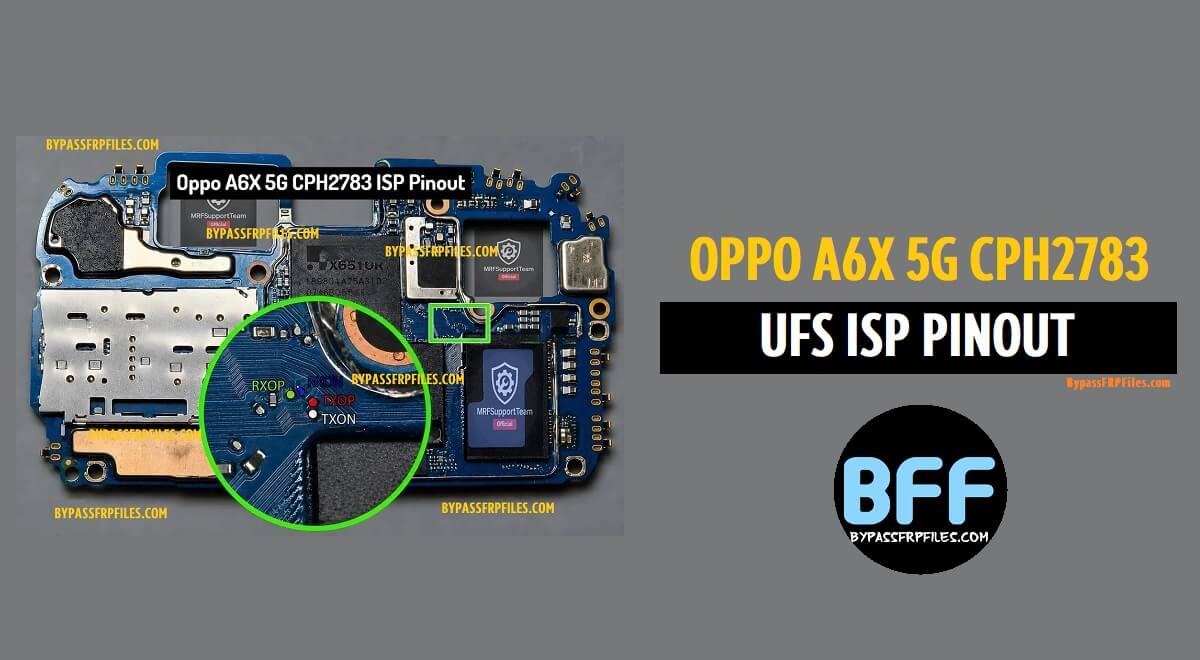

Oppo A6X 5G CPH2783 UFS ISP PinOUT Diagram Image:
The Oppo A6X 5G ISP and Test Point enables you to carefully boot into Flash Mode. So, follow the below methods to successfully boot to ISP Mode.
Also read: How to Enter Download or EDL Mode on Oppo Phone
More: QPST Tool – Qualcomm QPST Flash Tool Download Latest All Version
UFS ISP Pin Labels You Need:
REF_CLK: Reference clock signal used for timing
RST: Hardware reset pin
TX0_P: Transmit positive signal
TX0_N: Transmit negative signal
RX0_P: Receive positive signal
RX0_N: Receive negative signal
VCC: Main power supply (typically 2.5V or 3.3V)
VCCQ2: I/O power supply (typically 1.8V)**
Tip: You can use a microscope or a 10x magnifier to identify the points correctly.
Do read: Oppo Reno 13F CPH2701 ISP Pinout (UFS)
Required Tools for ISP Pinout Method
Make sure your workstation includes:
- UFI Box, Easy JTAG Plus, or Medusa Pro
- 0.1mm – 0.3mm jumper wires
- Fine-tip soldering iron
- Soldering flux
- Isopropyl Alcohol (IPA 99%)
- Multimeter
- Microscope or magnifier
Also read: Oppo K13 Turbo UFS ISP Pinout
How to Connect ISP to UFS or EMMC Box
- Open the back panel of the Oppo Reno 13F.
- Disassemble the phone.
- Locate the eMMC chip area on the PCB.
- Find & Solder to ISP Points
- Use the above diagram to identify these pins: CLK, TXON, TXOP, GND, and RXON, RXOP.
- Oppo A6X 5G UFS ISP PinOUT to Hard Reset, FRP Bypass or Flash firmware.
- Or, you can use the test points.
- Connect to UFI or Easy JTAG,
- In the UFI or Easy Jtag Software:
- Click Identify UFS
- Bypass FRP: Navigate to: User Partition – Special Task – Reset FRP
- Fix Dead Boot: Select the firmware & click flash.
- That’s it.
Also: OPPO A5x 5G (MT6835T) ISP Pinout (UFS)
Warning: Incorrectly shorting test points can damage the Oppo A6X 5G. Proceed with caution!
