The OPPO A60 CPH2683 ISP pinout enables you connect directly to the UFS memory to write DUMP file, Chip re-programming, or flash firmware or remove frp lock using ISP box like Easy JTAG, UFI Box, or Flash64 box.
What is UFS ISP Pinout?
ISP (In-System Programming) allows flash chip to be programmed without removing it from the PCB. It uses a specific pinout and protocol to communicate with computer.
A test point is a copper points on a PCB that allows you to boot the phone into the emergency download mode to perform flashing, unlocking or repairing the phone.
Read more: OPPO A5x 5G (MT6835T) ISP Pinout (UFS)

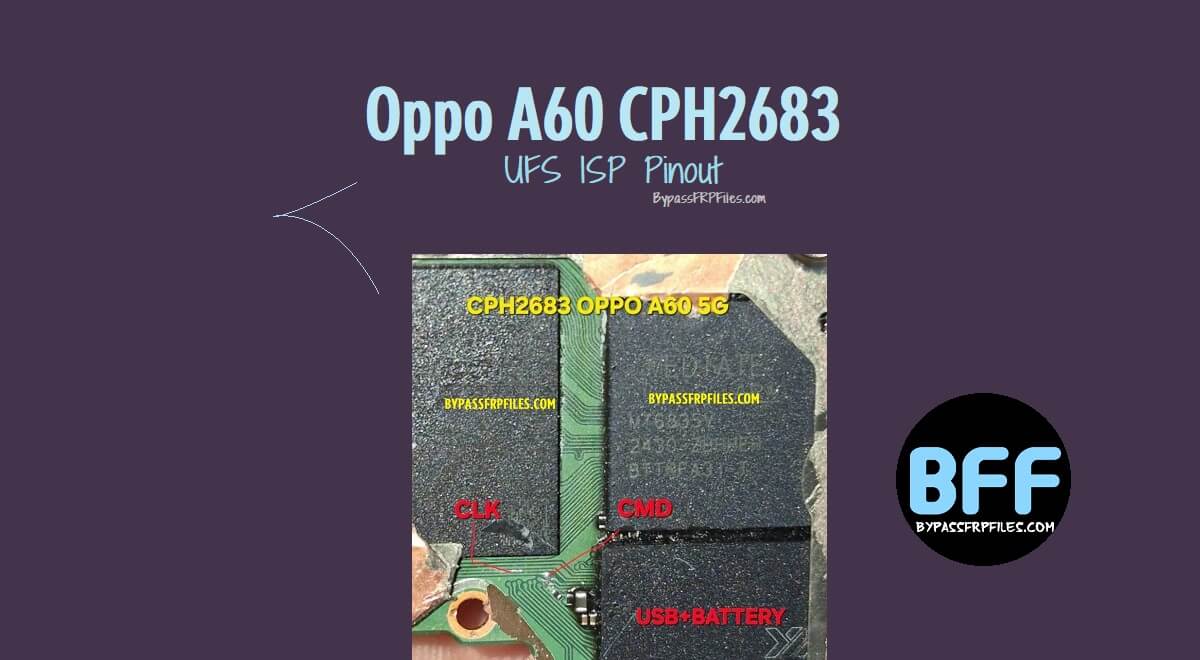

OPPO A60 CPH2683 UFS ISP PinOUT Diagram Image:
The OPPO A60 CPH2683 ISP and Test Point enables you to boot into memory Flash Mode without drilling. We’ll show you the tested ISP Pinout that allows you quickly fix any Android related issues in just one click on any security patch and Android version patch using any UFS repair tool.
Also read: How to Enter Download or EDL Mode on Oppo Phone
More: QPST Tool – Qualcomm QPST Flash Tool Download Latest All Version
UFS ISP Pin Labels You Need:
REF_CLK: Reference clock signal used for timing
RST: Hardware reset pin
TX0_P: Transmit positive signal
TX0_N: Transmit negative signal
RX0_P: Receive positive signal
RX0_N: Receive negative signal
VCC: Main power supply (typically 2.5V or 3.3V)
VCCQ2: I/O power supply (typically 1.8V)**
Tip: You can use a microscope or a 10x magnifier to identify the points correctly.
Do read: Oppo K13 Turbo UFS ISP Pinout
Required Tools for ISP Pinout Method
Make sure your workstation includes:
- UFI Box, Easy JTAG Plus, or Medusa Pro
- 0.1mm – 0.3mm jumper wires
- Fine-tip soldering iron
- Soldering flux
- Isopropyl Alcohol (IPA 99%)
- Multimeter
- Microscope or magnifier
Also read: Realme C55 RMX3710 Test Point
How to Connect ISP to UFS or EMMC Box
- Open the back panel of the OPPO A60.
- Disassemble the phone.
- Locate the eMMC chip area on the PCB.
- Find & Solder to ISP Points
- Use the above diagram to identify these pins: CLK, TXON, TXOP, GND, and RXON, RXOP.
- OPPO A60 UFS ISP PinOUT to Hard Reset, FRP Bypass or Flash firmware.
- Or, you can use the test points.
- Connect to UFI or Easy JTAG,
- In the UFI or Easy Jtag Software:
- Click Identify UFS
- Bypass FRP: Navigate to: User Partition – Special Task – Reset FRP
- Fix Dead Boot: Select the firmware & click flash.
- That’s it.
Also: Vivo Y400 Pro MT6878V ISP Pinout (UFS)
Warning: Incorrectly shorting test points can damage the OPPO A60. Proceed with caution!
