In this article, we’ll show you Realme Narzo 60x RMX3782 UFS ISP Pinout that allows you to write DUMP file, Chip re-programming, or flash firmware or remove frp lock, bypass FRP, remove locks, and flash the stock firmware using any UFS repair tool.
Also read: Realme C75x 4G (RMX5020) EMMC ISP PinOUT | Test Point
What is UFS ISP Pinout?
ISP (In-System Programming) allows flash chip to be programmed without removing it from the PCB. It uses a specific pinout and protocol to communicate with computer.
A test point is a copper points on a PCB that allows you to boot the phone into the emergency download mode to perform flashing, unlocking or repairing the phone.
Read more: Oppo A5 Pro 5G UFS ISP Pinout

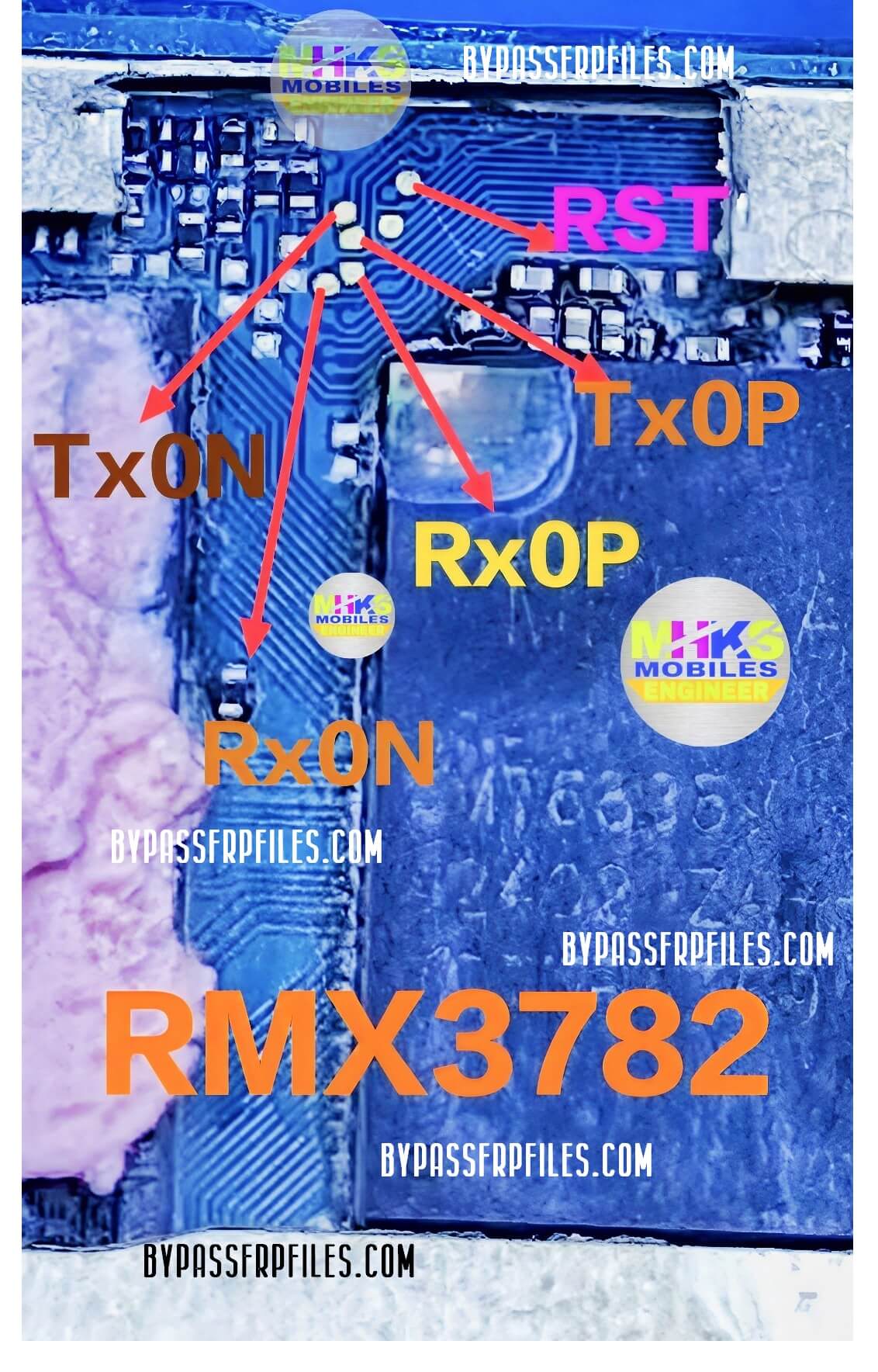

Realme Narzo 60x RMX3782 UFS ISP PinOUT Diagram Image:
The Realme Narzo 60x 5G ISP and Test Point enables you to carefully boot into Flash Mode. So, follow the below methods to successfully boot to Realme Narzo 60x 5G ISP Mode.
Also read: How to Enter Download or EDL Mode on Oppo Phone
More: QPST Tool – Qualcomm QPST Flash Tool Download Latest All Version
UFS ISP Pin Labels You Need:
- CLK
- TXOP
- TXON
- RXOP
- RXON
- GND – Ground
Tip: You can use a microscope or a 10x magnifier to identify the points correctly.
Do read: Nothing Phone 3A EDL Test Point
Required Tools for ISP Pinout Method
Make sure your workstation includes:
- UFI Box, Easy JTAG Plus, or Medusa Pro
- 0.1mm – 0.3mm jumper wires
- Fine-tip soldering iron
- Soldering flux
- Isopropyl Alcohol (IPA 99%)
- Multimeter
- Microscope or magnifier
Also read: Oppo Reno 14 5G CPH2737 UFS ISP PinOUT
How to Connect ISP to UFS or EMMC Box
- Open the back panel of the Realme Narzo 60x 5G.
- Disassemble the phone.
- Locate the eMMC chip area on the PCB.
- Find & Solder to ISP Points
- Use the above diagram to identify these pins: CLK, TXON, TXOP, GND, and RXON, RXOP.
- Realme Narzo 60x RMX3782 UFS ISP PinOUT to Hard Reset, FRP Bypass or Flash firmware.
Read more: Oppo Reno 13 5G CPH2689 UFS ISP PinOUT
- Or, you can use the test points.
- Connect to UFI or Easy JTAG,
- In the UFI or Easy Jtag Software:
- Click Identify UFS
- Bypass FRP: Navigate to: User Partition – Special Task – Reset FRP
- Fix Dead Boot: Select the firmware & click flash.
- That’s it.
Also: Honor X6c NIC-LX1 EMMC ISP PinOUT
Warning: Incorrectly shorting test points can damage the Realme Narzo 60x 5G. Proceed with caution!
