If you want Samsung Galaxy F15 5G SM-E156B ISP Pinout, then, we’ll show you UFS ISP PinOUT & Test Point that helps you to connect directly to the UFS storage chip and allows you to repair the Bricked, Forget pattern lock, FRP lock and other OS related issues easily.
What is ISP Pinout?
The ISP (In-System Programming) allows flash chip to be programmed without removing it from the PCB. It uses a specific pinout and protocol to communicate with computer.
Read more: Xiaomi 12 EDL Test Point | Reboot to EDL Mode
A test point is a copper points on a PCB that allows you to boot the phone into the emergency download mode to perform flashing, unlocking or repairing the phone.
Read more: Poco F4 EDL Test Point | Reboot to EDL Mode

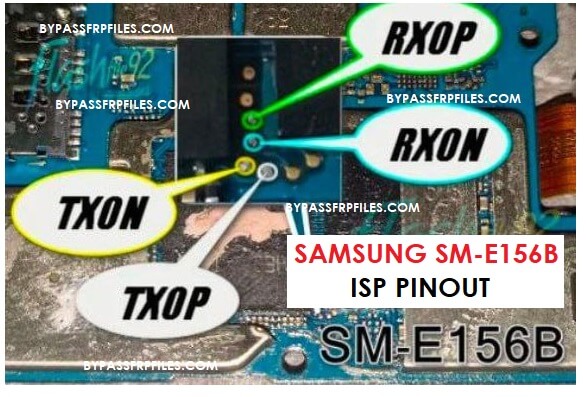

Samsung Galaxy F15 5G SM-E156B UFS ISP PinOUT Image:
The Samsung F15 5G ISP and Test Point enables you to carefully boot into Flash Mode. So, follow the below methods to successfully boot to Samsung F15 5G ISP Mode.
Also read: How to Enter Download or EDL Mode on Oppo Phone
More: QPST Tool – Qualcomm QPST Flash Tool Download Latest All Version
EMMC ISP Pin Labels You Need:
- CMD – Command Line
- CLK – Clock
- DAT0 – Data line 0
- VCC / VCCQ – Power supply for EMMC
- GND – Ground
Tip: You can use a microscope or a 10x magnifier to identify the points correctly.
Required Tools for ISP Pinout Method
Make sure your workstation includes:
- UFI Box, Easy JTAG Plus, or Medusa Pro
- 0.1mm – 0.3mm jumper wires
- Fine-tip soldering iron
- Soldering flux
- Isopropyl Alcohol (IPA 99%)
- Multimeter
- Microscope or magnifier
Also read: Samsung A15 5G SM-A156 UFS ISP Pinout
How to Connect ISP to UFS or EMMC Box
- Open the back panel of the Samsung F15 5G
- Disassemble the phone.
- Locate the eMMC chip area on the PCB.
- Find & Solder to ISP Points
- Use the above diagram to identify these pins: CLK, TXON, TXOP, GND, and RXON, RXOP.
- Samsung F15 5G SM-E156B UFS ISP PinOUT to Hard Reset, FRP Bypass or Flash firmware.
Read more: Samsung S21 FE SM-G990 UFS ISP PinOUT
- Or, you can use the test points.
- Connect to UFI or Easy JTAG,
- In the UFI or Easy Jtag Software:
- Click Identify UFS
- Bypass FRP: Navigate to: User Partition – Special Task – Reset FRP
- Fix Dead Boot: Select the firmware & click flash.
- That’s it.
Also: Redmi 15C EMMC ISP PinOUT
Warning: Incorrectly shorting test points can damage the Oppo A40. Proceed with caution!
