Are you looking for flashing or writing DUMP, UFS chip programming, removing frp lock? Then, Oppo Reno 14 CPH2737 UFS ISP Pinout can be helpful. You can use this pinout to bypass factory reset protection, remove locks, and flash the stock firmware using any UFS or EMMC repair tool.
Also read: Realme C71 RMX5303 SPD Test Point
What is Oppo Reno 14 CPH2737 UFS ISP Pinout?
ISP (In-System Programming) allows flash chip to be programmed without removing it from the PCB. It uses a specific pinout and protocol to communicate with computer.
Read more: Xiaomi 12 EDL Test Point
A test point is a copper points on a PCB that allows you to boot the phone into the emergency download mode to perform flashing, unlocking or repairing the phone.
Read more: Poco F4 EDL Test Point

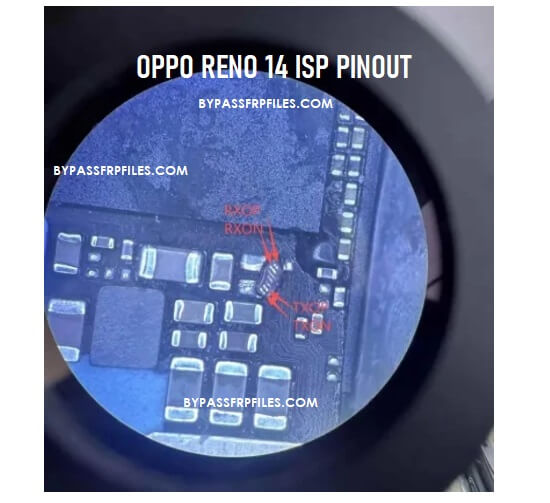

Oppo Reno 14 CPH2737 ISP PinOUT Diagram Image:
The Oppo Reno 14 ISP and Test Point enables you to carefully boot into Flash Mode. So, follow the below methods to successfully boot to Oppo CPH2737 ISP Mode.
Also read: How to Enter Download or EDL Mode on Oppo Phone
More: QPST Tool – Qualcomm QPST Flash Tool Download Latest All Version
UFS ISP Pin Labels You Need:
- CLK
- TXOP
- TXON
- RXOP
- RXON
- GND – Ground
Tip: You can use a microscope or a 10x magnifier to identify the points correctly.
Do read: Realme 13 Plus 5G RMX5000 UFS ISP PinOUT
Required Tools for ISP Pinout Method
Make sure your workstation includes:
- UFI Box, Easy JTAG Plus, or Medusa Pro
- 0.1mm – 0.3mm jumper wires
- Fine-tip soldering iron
- Soldering flux
- Isopropyl Alcohol (IPA 99%)
- Multimeter
- Microscope or magnifier
Also read: Redmi A3x SPD Test Point
How to Connect ISP to UFS or EMMC Box
- Open the back panel of the Oppo Reno 14.
- Disassemble the phone.
- Locate the eMMC chip area on the PCB.
- Find & Solder to ISP Points
- Use the above diagram to identify these pins: CLK, TXON, TXOP, GND, and RXON, RXOP.
- Oppo Reno 14 UFS ISP PinOUT to Hard Reset, FRP Bypass or Flash firmware.
Read more: Oppo A40 EMMC ISP PinOUT
- Or, you can use the test points.
- Connect to UFI or Easy JTAG,
- In the UFI or Easy Jtag Software:
- Click Identify UFS
- Bypass FRP: Navigate to: User Partition – Special Task – Reset FRP
- Fix Dead Boot: Select the firmware & click flash.
- That’s it.
Also: Oppo K12x UFS ISP Pinout
Warning: Incorrectly shorting test points can damage the Oppo Reno 14. Proceed with caution!
